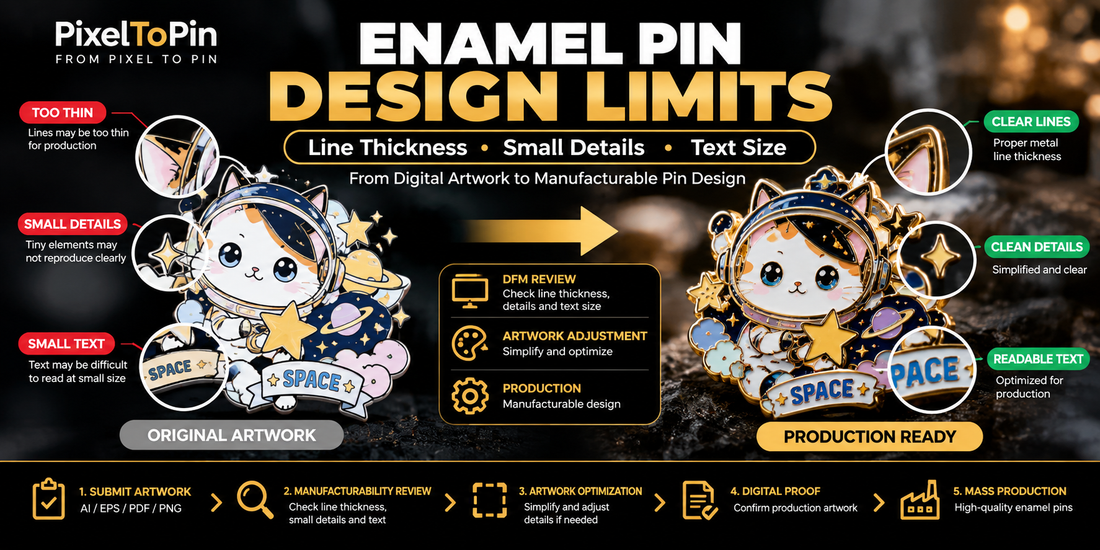

Enamel Pin Design Limits: Minimum Line Thickness, Small Details & Text Size
A detailed illustration can look perfect on a computer screen but still require adjustments before it can become a physical enamel pin.
The reason is simple: enamel pin artwork must follow physical manufacturing limits for metal lines, enamel-filled areas, small text and fine details. Features that are easy to display as pixels or vectors may become too small to form reliably when the artwork is reduced to a 1-inch or 1.25-inch metal pin.
The most important factors are not just how detailed the original artwork is, but the finished pin size, minimum metal line thickness, minimum feature size, enamel fill area, text legibility and production process.
This guide explains the manufacturing terminology behind those limits and shows how to prepare detailed artwork without unnecessarily sacrificing the character of your original design.
What Are the Main Design Limits for Custom Enamel Pins?
The main enamel pin design limits involve metal line thickness, minimum feature size, enamel fill areas, small text, spacing and the finished size of the pin. Exact feasibility depends on the artwork and manufacturing process, so complex designs should be reviewed before production rather than relying on one universal minimum measurement.
| Design Element | Why It Matters | Common Production Risk | Typical Solution | What PixelToPin Reviews |
|---|---|---|---|---|
| Metal Lines | Separate enamel color areas and define shapes | Extremely thin lines may not reproduce reliably | Strengthen selected lines | Minimum metal line feasibility |
| Small Enamel Areas | Need enough physical space for color filling | Tiny recessed areas can become difficult to fill cleanly | Enlarge, merge or simplify selected areas | Enamel fill area |
| Small Text | Must remain readable at finished size | Letters can close up or lose clarity | Increase size, simplify font or use printing | Text legibility |
| Fine Details | Need sufficient physical feature size | Details may merge or disappear after scaling | Simplify or use surface printing | Minimum feature size |
| Color Separation | Traditional enamel areas often require physical separation | Adjacent colors may not work as expected without metal boundaries | Add or revise metal separation | Color-fill structure |
| Finished Pin Size | Controls how much physical space the artwork has | A complex design can become crowded when reduced | Increase size or simplify details | Artwork-to-size compatibility |
| Gradients / Tiny Graphics | Traditional enamel is based on defined physical color areas | Complex digital effects may not translate directly | Consider screen or UV printing | Alternative production process |
Quick Answer: There is no single minimum line or detail size that works for every enamel pin. Manufacturing feasibility depends on the finished size, artwork geometry, enamel process, plating, feature location and production method. The safest approach is to review the artwork at actual production size before tooling.
Why Do Enamel Pins Have Minimum Design Limits?
Enamel pins have design limits because they are physical metal products, not flat digital images.
A digital illustration can contain extremely thin strokes, tiny gaps and microscopic color areas because the image is rendered by pixels or vectors.
A traditional enamel pin requires those elements to become physical structures.
This means a line in your artwork may need to become a real metal boundary, while a colored area may need to become a physical recessed area capable of receiving enamel.
Manufacturability describes whether a design can be produced reliably using the intended materials, dimensions and manufacturing process.
What Is Minimum Metal Line Thickness?
Minimum metal line thickness refers to how narrow a physical metal line can be while still reproducing reliably in the intended enamel pin design.
Metal lines perform several important functions:
- Define the artwork
- Separate enamel colors
- Create outlines
- Form facial and decorative details
- Support the physical structure of small features
A line that looks clear at 500% zoom in Illustrator may become extremely thin when the design is reduced to actual pin size.
That is why line thickness should always be evaluated at the intended physical dimensions of the product.
Is There One Standard Minimum Metal Line Thickness?
No single minimum metal line thickness should be treated as universal for every custom enamel pin.
Feasibility can vary according to:
- Hard enamel vs soft enamel
- Finished pin size
- Line length
- Line position
- Nearby recessed areas
- Plating
- Artwork complexity
- Tooling structure
- Whether the detail is enamel-filled or printed
For this reason, PixelToPin recommends a manufacturability review rather than applying one number blindly to every artwork file.
What Is a Die-Struck Metal Line?
A die-struck metal line is a raised or defined metal feature formed as part of the physical pin structure during manufacturing.
In many traditional enamel designs, these metal features separate neighboring enamel-filled areas.
These boundaries are one of the reasons traditional enamel artwork often looks more structured than a flat digital illustration.
A die-struck line is a physical metal feature created through the tooling and forming process rather than a purely printed line placed on the surface.
Why Do Different Enamel Colors Need Metal Separation?
In traditional enamel construction, metal boundaries are commonly used to separate individual enamel-filled areas and maintain the structure of the design.
Imagine a digital illustration with a red area touching a blue area directly.
On screen:
In a traditional enamel structure, the artwork may instead require:
This metal separation becomes part of the visual language of the finished pin.
If you want extremely detailed color transitions without traditional metal separation, another process such as UV printing may be more appropriate for selected artwork.
What Is an Enamel Fill Area?
An enamel fill area is the physical region of a pin designed to receive a specific enamel color.
Depending on the process, these areas are formed within the metal structure of the pin.
If an area becomes extremely narrow or tiny, it may become difficult to fill and finish consistently.
An enamel fill area is a defined physical region intended to receive enamel during production.
What Is a Recessed Area?
A recessed area is a lower section of the metal design that can hold enamel or form part of the visual relief structure.
This is particularly easy to understand with soft enamel pins, where the metal lines remain raised above the enamel surface.
With hard enamel, the enamel is polished to create a smoother, more level final surface, but the artwork still needs a production-compatible metal and color structure.
For a full comparison, see our Hard Enamel vs Soft Enamel Pins Guide.
How Small Can Details Be on an Enamel Pin?
The smallest practical detail depends on the finished pin size, the shape of the feature and how that detail will be manufactured.
Instead of asking only:
A better production question is:
A tiny feature may be represented using:
- Raised metal
- Recessed metal
- Enamel fill
- Screen printing
- UV printing
- Artwork simplification
The correct method depends on the role that detail plays in the artwork.
What Is Minimum Feature Size?
Minimum feature size refers to the smallest physical element that can be reproduced reliably using a particular manufacturing process.
A feature can be:
- A line
- A dot
- An eye
- A letter opening
- A gap between shapes
- A tiny enamel region
- A raised metal element
- A recessed detail
Minimum feature size is the smallest physical design element that can be manufactured with acceptable clarity and consistency using the selected production process.
Why Does Finished Pin Size Matter So Much?
Finished pin size determines how much physical space is available for every line, letter, gap and enamel area in the design.
Consider the same detailed artwork produced at different dimensions:
↓
Smaller Pin → Same Artwork Compressed Into Less Space
↓
Thinner Lines + Smaller Gaps + Smaller Enamel Areas
This is why a design that works well at 2 inches may require modification when reduced to 1 inch.
For more guidance, see our Custom Enamel Pin Size Guide.
Should You Make the Pin Larger or Simplify the Artwork?
If the artwork contains more detail than the selected size can support, the two main solutions are increasing the pin size or simplifying selected details.
| Situation | Possible Solution | Why |
|---|---|---|
| Detailed character artwork | Increase finished size | Creates more physical room for facial and clothing details |
| Tiny decorative background | Simplify selected elements | Keeps attention on the primary design |
| Small facial features | Use selective printing | Can preserve fine details without excessive metal separation |
| Very small text | Increase text size or simplify wording | Improves legibility |
| Complex gradient | Consider UV printing | Traditional enamel is better suited to defined color areas |
| Too many tiny color cells | Merge or simplify selected areas | Creates more practical enamel fill areas |
How Small Can Text Be on an Enamel Pin?
Text must be large and open enough to remain legible after the artwork is reduced to the finished physical size and converted into the selected production process.
There is no useful universal font-size rule because two fonts at the same nominal size can have completely different stroke widths and internal spaces.
Important factors include:
- Font style
- Stroke width
- Letter height
- Spacing
- Openings inside letters
- Finished pin size
- Whether the text is metal, enamel or printed
Why Do Thin Fonts Cause Problems?
Thin fonts can become difficult to reproduce because their strokes and internal gaps may become extremely small at physical production size.
Common risk areas include letters such as:
- A
- B
- e
- R
- O
- P
- g
Their internal spaces can close visually if the text becomes too small or the strokes need to be strengthened for production.
A bold or simplified font often performs better than a very thin display font on a small enamel pin.
Can Small Text Be Screen Printed Instead?
Yes. Screen printing can be useful for selected small text or fine details that would be difficult to reproduce as separate metal and enamel structures.
This does not mean every small detail should automatically be printed.
The best approach is to decide whether the feature should be:
based on the artwork and intended visual result.
For very small text, fine lines, gradients or complex artwork, screen printing or UV printing may be used alongside traditional enamel when those details are not suitable for separate metal-bordered enamel areas.
Can Enamel Pins Reproduce Gradients?
Traditional enamel is designed primarily around defined color-filled areas, so smooth digital gradients do not translate directly into standard enamel construction.
A digital gradient might look like:
Traditional enamel can approximate this using separate defined colors:
For smoother gradient-style artwork, UV printing may be considered.
Can Enamel Pins Reproduce Shadows and Highlights?
Yes, but shadows and highlights usually need to be interpreted as physical color areas, metal details or printed elements rather than copied directly from a digital illustration.
For example, a painted face might contain dozens of subtle tones.
An enamel version may use:
- One base skin color
- One shadow color
- One highlight color
- Metal outlines
- Printed facial details
This process is part of artwork simplification.
What Is Artwork Simplification?
Artwork simplification means selectively adjusting details so the design remains visually recognizable while becoming more suitable for physical manufacturing.
Good simplification does not mean turning detailed artwork into a generic icon.
Instead, it prioritizes:
- Silhouette
- Major color blocks
- Important facial features
- Brand-defining details
- Readable text
- Strong visual hierarchy
What Is Production Artwork?
Production artwork is the manufacturing-ready version of a customer's design showing how the artwork will be translated into physical metal, enamel, printing and other production specifications.
Production artwork can identify:
- Finished dimensions
- Metal outlines
- Enamel fill areas
- Pantone/PMS colors
- Plating
- Printed details
- Special effects
- Post placement
- Backing specification
This step is important because the original illustration and manufacturing artwork serve different purposes.
What Is a Manufacturability Review?
A manufacturability review checks whether the artwork can be produced reliably at the requested size and specification before tooling begins.
The review can identify:
- Metal lines that may be too thin
- Enamel areas that may be too small
- Text that may lose legibility
- Details that may merge
- Areas that require metal separation
- Details better suited to printing
- Potential issues caused by reducing the artwork
Design for Manufacturability means adapting a design so it can be produced efficiently and reliably while preserving the intended appearance and function.
What Is Production Tolerance?
Production tolerance describes the acceptable physical variation that can occur during manufacturing rather than expecting every microscopic feature to behave like a digital vector file.
Enamel pins are physical manufactured products, so the design should not rely on features that only work if every line or gap remains microscopically exact.
A production-friendly design provides enough physical room for:
- Metal definition
- Enamel filling
- Polishing
- Plating
- Printing where required
- Quality inspection
Why Can Artwork Look Different After It Is Converted for Production?
Artwork can look slightly different after production conversion because some digital features must be translated into physical metal lines, enamel areas or printed details.
Typical adjustments can include:
- Strengthening very thin lines
- Opening very small gaps
- Increasing tiny text
- Merging microscopic color areas
- Simplifying small decorative elements
- Adding metal separation
- Converting selected details to printing
These changes should be reviewed on the production artwork before manufacturing.
How Does Hard Enamel Affect Fine Details?
Hard enamel creates a smooth polished surface, but the artwork still needs sufficient physical separation and feature size for reliable production.
The polishing process does not remove the need for production-compatible artwork.
Hard enamel is particularly popular when the desired result is:
- Smooth
- Polished
- Clean
- Premium-looking
- Relatively level across metal and enamel areas
How Does Soft Enamel Affect Fine Details?
Soft enamel retains raised metal lines and recessed enamel areas, making the physical metal structure especially visible and tactile.
This can work well for designs where raised outlines and texture are part of the intended visual style.
However, tiny recessed areas still need to be practical for enamel filling.
Does Plating Affect Fine-Line Artwork?
Plating affects the appearance and contrast of metal details, so the same fine-line artwork can look visually different with gold, silver, black nickel or antique finishes.
For example:
- Black nickel can create strong dark outlines
- Gold can create warmer visual separation
- Silver can create a clean neutral contrast
- Antique finishes can emphasize recessed relief differently
See our Custom Enamel Pin Plating Guide for more detail.
Does Pin Thickness Affect Minimum Artwork Detail?
Pin thickness and artwork detail are related to different parts of the product specification, so making a pin thicker does not automatically allow microscopic artwork details to be reproduced.
Thickness mainly affects the physical body and feel of the pin, while fine-detail feasibility depends more directly on:
- Artwork geometry
- Finished dimensions
- Metal line structure
- Enamel areas
- Production process
This distinction is important because increasing metal thickness is not a substitute for correcting an overly detailed production design.
Can Increasing Pin Size Preserve More Artwork Detail?
Yes. Increasing the finished pin size can create more physical room for lines, text, enamel areas and small design features.
For example, if the same artwork is enlarged proportionally:
However, larger is not automatically better.
The final size should also consider:
- How the pin will be worn
- Finished weight
- Post configuration
- Packaging
- Target retail price
- Intended visual impact
When Should You Use Screen Printing for Fine Details?
Screen printing is useful when selected solid-color details are too fine to reproduce efficiently as separate metal-bordered enamel areas.
Examples include:
- Small eyes
- Eyebrows
- Tiny facial lines
- Fine lettering
- Small logos
- Decorative marks
The main design can remain traditional enamel while printing is used only where needed.
When Should You Use UV Printing?
UV printing can be considered when the artwork requires complex multicolor graphics, very fine surface details or gradient-style elements that are difficult to reproduce using traditional enamel construction alone.
This creates a hybrid approach:
The goal is not to replace enamel unnecessarily, but to use each process where it performs best.
Should You Simplify Artwork Before Sending It to a Manufacturer?
Not necessarily. It is often better to send the strongest original artwork first and allow the manufacturer to identify which areas actually require production adjustment.
If you simplify too aggressively before a manufacturing review, you may remove details that could have been preserved.
A better workflow is:
PixelToPin offers free artwork support to help convert customer artwork into a production-ready specification.
What File Format Is Best for Detailed Enamel Pin Artwork?
Vector artwork such as AI, EPS, SVG or suitable vector PDF files is generally preferred because paths and shapes can be adjusted cleanly during production artwork preparation.
However, a customer should not delay an inquiry simply because vector artwork is unavailable.
High-resolution raster artwork can still be reviewed to determine the next step.
See our Artwork Guide for artwork preparation guidance.
How Do You Know Whether Your Artwork Is Too Detailed?
Your artwork may need adjustment if important features become difficult to distinguish when viewed at the intended finished pin size.
Warning signs include:
- Very thin lines
- Many tiny color regions
- Small text
- Dense facial details
- Extremely narrow gaps
- Multiple overlapping outlines
- Complex gradients
- Small photographic textures
Useful Test: View the artwork close to its intended physical size instead of judging it only while zoomed in on a large computer monitor. If essential details become difficult to distinguish, they deserve a production review.
What Should Artists Keep and What Should They Simplify?
Preserve the features that define the character, logo or visual identity, and simplify secondary details that do not remain meaningful at the final physical scale.
| Usually Preserve | Consider Simplifying |
|---|---|
| Primary silhouette | Microscopic background texture |
| Key facial features | Very small decorative marks |
| Brand logo | Redundant internal lines |
| Important typography | Secondary tiny wording |
| Major color blocks | Subtle digital gradients |
| Iconic accessories | Details invisible at actual pin size |
How Can Better Artwork Reduce Production Problems?
Production-ready artwork reduces ambiguity before tooling and helps the factory understand exactly how metal, enamel, printing and other processes should be used.
A clear specification can reduce the risk of:
- Unreadable text
- Weak fine details
- Unclear color separation
- Unexpected artwork changes
- Unnecessary tooling revisions
- Misunderstandings during approval
This is why artwork review should happen before mass production rather than after the product is finished.
What Should Be Checked on the Digital Proof?
Before approval, check the digital proof for dimensions, metal lines, color areas, text, plating, printed details and any artwork adjustments made for manufacturing.
Review:
- Finished size
- Overall shape
- Metal line placement
- Small text
- Pantone/PMS references
- Color separation
- Plating
- Screen-printed details
- UV-printed details
- Special effects
- Post placement
- Backing specification
PixelToPin provides a free digital artwork proof within 2 hours of inquiry so customers can review the production specification before manufacturing.
Enamel Pin Design Limits Checklist
Before approving detailed enamel pin artwork, review the design at actual production size and confirm that its most important features are physically manufacturable.
- Is the finished pin size confirmed?
- Are important metal lines thick enough for the selected process?
- Are enamel fill areas large enough to produce reliably?
- Are neighboring colors properly separated where required?
- Is small text still readable?
- Are internal letter openings clear?
- Are important facial details large enough?
- Could selected fine details use screen printing?
- Would complex gradients work better with UV printing?
- Does the artwork need selective simplification?
- Have PMS/color references been confirmed?
- Has plating been selected?
- Has the artwork received a manufacturability review?
- Have all production-artwork adjustments been approved?
Frequently Asked Questions
How thin can lines be on an enamel pin?
There is no single minimum line thickness that applies to every enamel pin. The practical limit depends on finished size, artwork geometry, enamel process, line position and manufacturing method. The artwork should be reviewed at production size before tooling.
Why do enamel pins need metal lines between colors?
Traditional enamel designs commonly use metal boundaries to define and separate individual enamel-filled areas. These boundaries become part of the physical structure and appearance of the pin.
How small can details be on an enamel pin?
The minimum practical detail depends on the size, shape and production method used for that feature. Very small details may need to be enlarged, simplified or reproduced with screen or UV printing.
How small can text be on an enamel pin?
Text needs to remain physically legible at the finished pin size. Font style, stroke width, spacing, internal letter openings and production method are more useful considerations than relying on one universal font-size rule.
Can small text be screen printed?
Yes. Screen printing can be useful for selected fine text and graphic details that are impractical to reproduce as separate enamel-filled structures.
Can enamel pins have gradients?
Traditional enamel is best suited to defined color areas. Gradient-style artwork may be simplified into separate colors or reproduced using an appropriate printing process such as UV printing.
Why does my manufacturer want to simplify my artwork?
Some digital details may become too small to manufacture reliably after the design is reduced to physical pin size. Selective simplification can preserve the most important visual features while improving manufacturability.
Will making my enamel pin thicker preserve more detail?
Not automatically. Fine-detail feasibility depends more directly on finished size, artwork geometry, metal line structure, enamel areas and the selected production process.
Will making my enamel pin larger preserve more detail?
Often, yes. A larger finished size provides more physical space for lines, text, enamel areas and other features, although size should also be balanced with weight, use and overall design goals.
What is minimum feature size?
Minimum feature size is the smallest physical design element that can be reproduced reliably using the selected manufacturing process.
What is a manufacturability review?
A manufacturability review checks whether artwork can be produced reliably at the requested size, materials and specification before tooling or mass production begins.
Should I simplify my artwork before sending it to PixelToPin?
Not necessarily. You can send the original artwork first. PixelToPin can review the design and identify which details, if any, should be adjusted for production.
Not Sure If Your Artwork Is Too Detailed for an Enamel Pin?
Send your original artwork and intended pin size to PixelToPin. We can review the metal line thickness, enamel fill areas, small text, fine details, color separation and overall manufacturability before production.
Free Artwork Support · 50pcs MOQ · 2-Hour Digital Proof · Factory-Direct Production · Manufacturability Review
GET A FREE 2-HOUR DIGITAL PROOF
